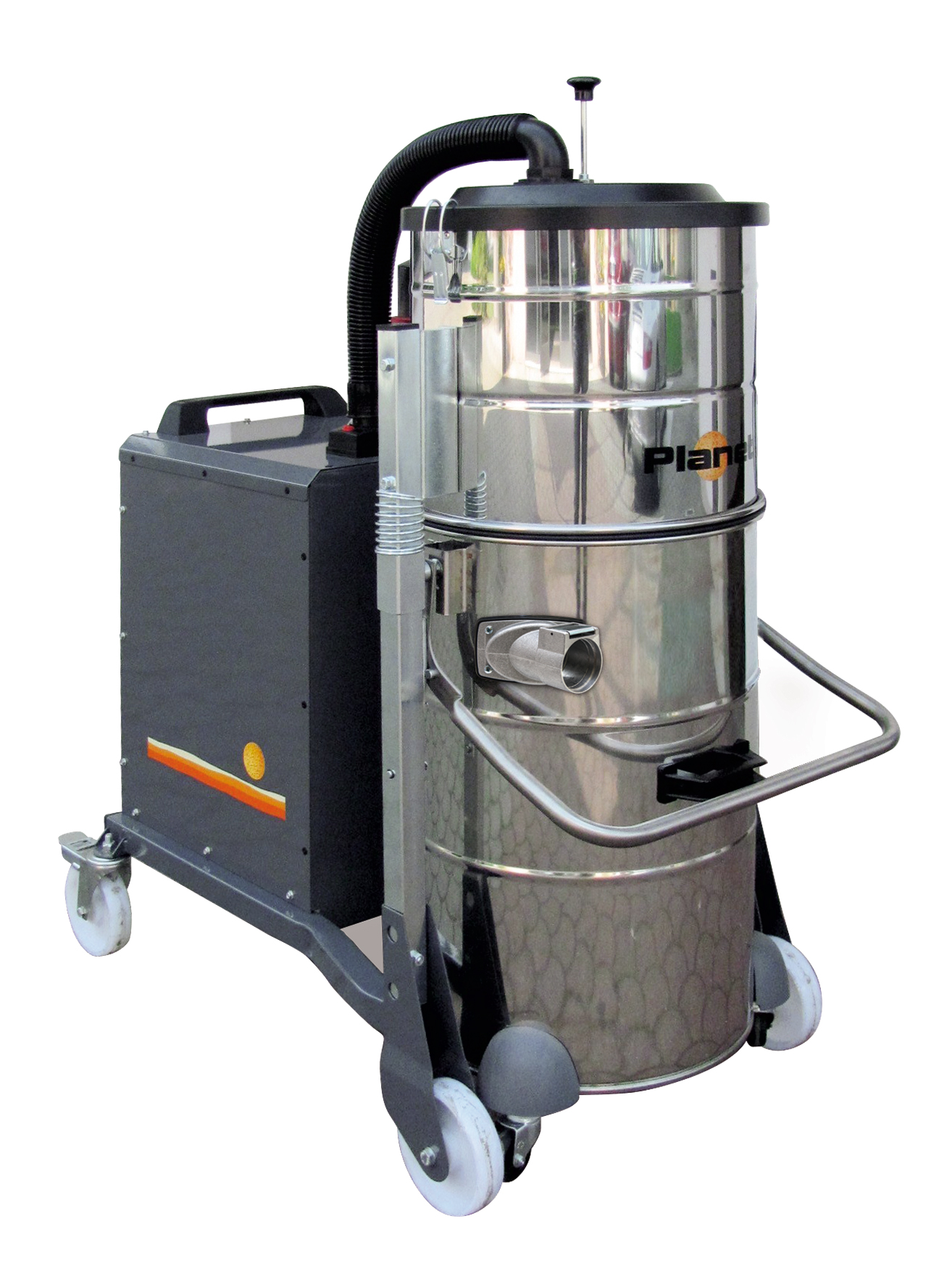

PLANET 140M GL

Low cost Heavy Duty Vac^TMfor continuous duty. Available in Single phase and 3phase configurations. Very powerful machine with compact design. Detachable recovery tank for easy emptying. Perfect for machine shops, cosmetics industry, plastics industry, ceramics industry, general clean-up, etc.

/tempFiles/Guest-178.jpg?cID=2&itID=12&scID=3

Downloads

Planet 140M GL Brochure

Planet 140M GL Brochure (French)

Planet 140M GL Brochure (Spanish)

Certifications

CLEANING MACHINES FOR UNCLASSIFIED (GENERAL PURPOSE) AREAS
CLASS 16 1101 - 16 1181
All the electrical components are recognized or certified UL or CSA and qualifies for all applicable requirements CAN/CSA-C 22.2 No. 243 & UL STD No. 1017

Features

Regenerative blower for continuous duty.
Main Filter with Manual Filter Shaker
Upstream filter cartridge for fine dust.
Optional HEPA filter with minimum efficiency of 99.97% on 0.3 micron (installed in the place of the upstream filter cartridge).
Detachable recovery tank for easy emptying.

TechnicalSpecs

Specs	111210A1	111210A5
Collection Type	Dry (Wet optional) Dry (Wet optional)	Dry (Wet optional) Dry (Wet optional)
Voltage @60Hz	460 V 460 V	575 V 575 V
Type of power	3-phase 3-phase	3-phase 3-phase
Power	5.5 HP (4000W) 5.5 HP (4000W)	5.5 HP (4000W) 5.5 HP (4000W)
Current (Max)	n/a n/a	n/a n/a
Airflow	194 CFM 194 CFM	194 CFM 194 CFM
Waterlift (inches H₂O)	118 in. H₂O 118 in. H₂O	118 in. H₂O 118 in. H₂O
Container Material	430 Stainless steel 430 Stainless steel	430 Stainless steel 430 Stainless steel
Container diameter	420 mm 420 mm	420 mm 420 mm
Main Filter Area	3740 cm² + 13900 cm² 3740 cm² + 13900 cm²	3740 cm² + 13900 cm² 3740 cm² + 13900 cm²
HEPA Filter	Optional Optional	Optional Optional
Type of filter	Star shaped + cartridge Star shaped + cartridge	Star shaped + cartridge Star shaped + cartridge
Optional HEPA Filter Efficiency	99.97% on 0.3 micron 99.97% on 0.3 micron	99.97% on 0.3 micron 99.97% on 0.3 micron
HEPA Filter Area (upstream)	13900 cm² 13900 cm²	13900 cm² 13900 cm²
Dimensions (L x W x H)	n/a n/a	n/a n/a
Machine Inlet Diameter	60 mm 60 mm	60 mm 60 mm
Weight (Vacuum only)	160 lbs (73 kg) 160 lbs (73 kg)	160 lbs (73 kg) 160 lbs (73 kg)
Cord Length	30 ft. (9m) 30 ft. (9m)	30 ft. (9m) 30 ft. (9m)
Container Capacity	15.6 gal (60 L) 15.6 gal (60 L)	15.6 gal (60 L) 15.6 gal (60 L)
Sound Level (@1m)	n/a n/a	n/a n/a
