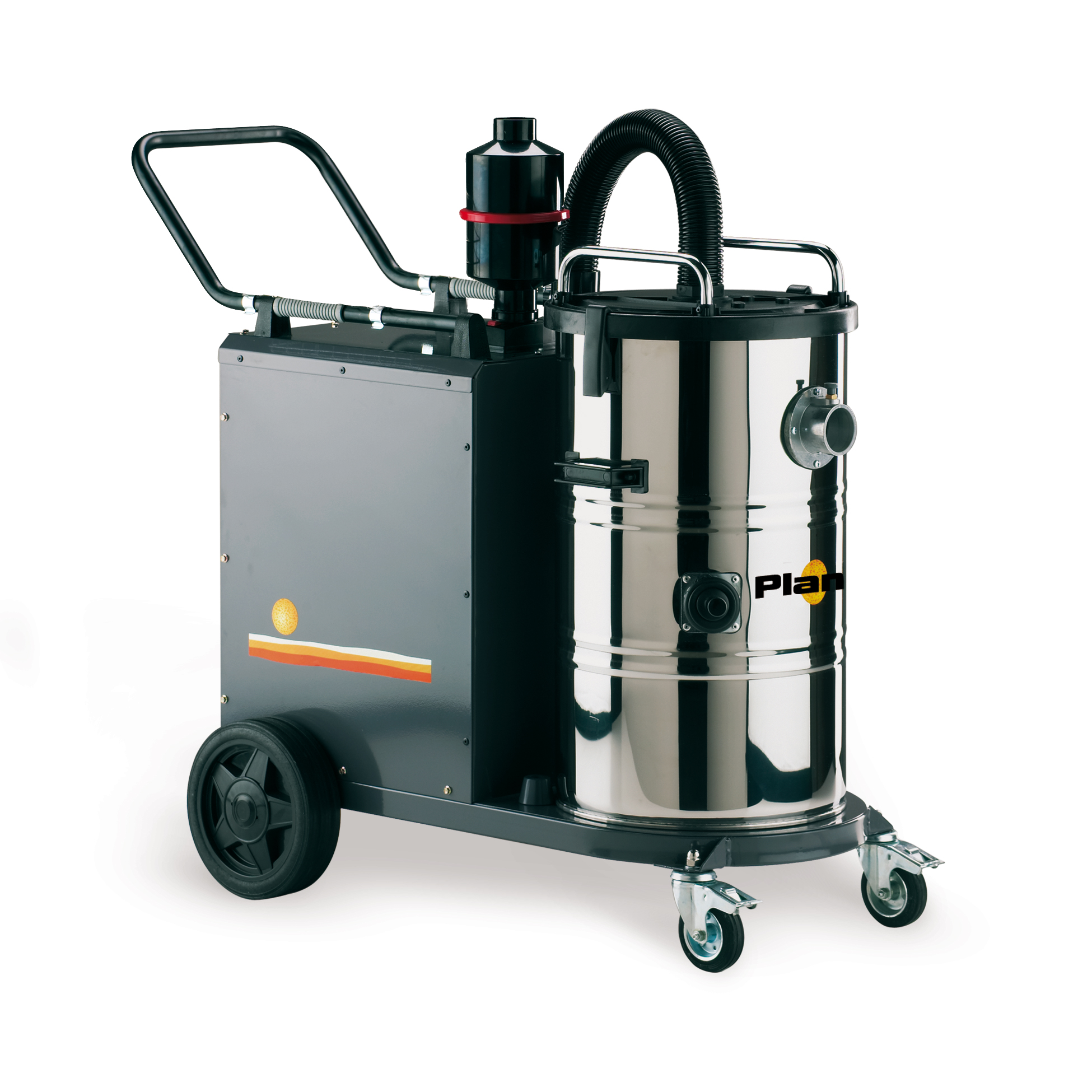

PLANET 130 Low cost Heavy Duty VacTM for continuous duty. Available in single phase and 3phase configurations. Very powerful yet compact machine. Perfect for car washes, small machine shops, cosmetics industry, dental labs, general clean-up, etc. Downloads Planet 130 Brochure Planet 130 Brochure (French) Planet 130 Brochure (Spanish) Certifications CLEANING MACHINES FOR UNCLASSIFIED (GENERAL PURPOSE) AREAS CLASS 16 1101 - 16 1181 All the electrical components are recognized or certified UL or CSA and qualifies for all applicable requirements CAN/CSA-C 22.2 No. 243 & UL STD No. 1017 Features Regenerative blower for continuous duty. Star shaped polyester main filter with manual filter shaker. Upstream filter cartridge for fine dust. Exhaust silencer for a quiet operation. TechnicalSpecs Specs111202A1111202A2Collection TypeDry (Wet optional) Dry (Wet optional) Dry (Wet optional) Dry (Wet optional) Voltage @60Hz460 V 460 V 230 V 230 V Type of power3-phase 3-phase 3-phase 3-phase Power4 HP (3000 W) 4 HP (3000 W) 4 HP (3000 W) 4 HP (3000 W) Current (Max)n/a n/a n/a n/a Airflow194 CFM 194 CFM 194 CFM 194 CFM Waterlift (inches H2O)100 in. H2O 100 in. H2O 100 in. H2O 100 in. H2O Container Material430 Stainless steel 430 Stainless steel 430 Stainless steel 430 Stainless steel Container diameter420 mm 420 mm 420 mm 420 mm Main Filter Area3020 cm2 + 6630 cm2 3020 cm2 + 6630 cm2 3020 cm2 + 6630 cm2 3020 cm2 + 6630 cm2 HEPA FilterOptional Optional Optional Optional Type of filterStar shaped + cartridge Star shaped + cartridge Star shaped + cartridge Star shaped + cartridge Optional HEPA Filter Efficiency99.97% on 0.3 micron 99.97% on 0.3 micron 99.97% on 0.3 micron 99.97% on 0.3 micron HEPA Filter Area (upstream)6630 cm2 6630 cm2 6630 cm2 6630 cm2 Dimensions (L x W x H)42" x 24" x 43" (107cm x 61cm x 109.5cm) 42" x 24" x 43" (107cm x 61cm x 109.5cm) 42" x 24" x 43" (107cm x 61cm x 109.5cm) 42" x 24" x 43" (107cm x 61cm x 109.5cm) Machine Inlet Diameter60 mm 60 mm 60 mm 60 mm Weight (Vacuum only)196 lbs (89 kg) 196 lbs (89 kg) 196 lbs (89 kg) 196 lbs (89 kg) Cord Length30 ft. (9m) 30 ft. (9m) 30 ft. (9m) 30 ft. (9m) Container Capacity15.6 gal (60 L) 15.6 gal (60 L) 15.6 gal (60 L) 15.6 gal (60 L) Sound Level (@1m)72 dB(a) 72 dB(a) 72 dB(a) 72 dB(a)
