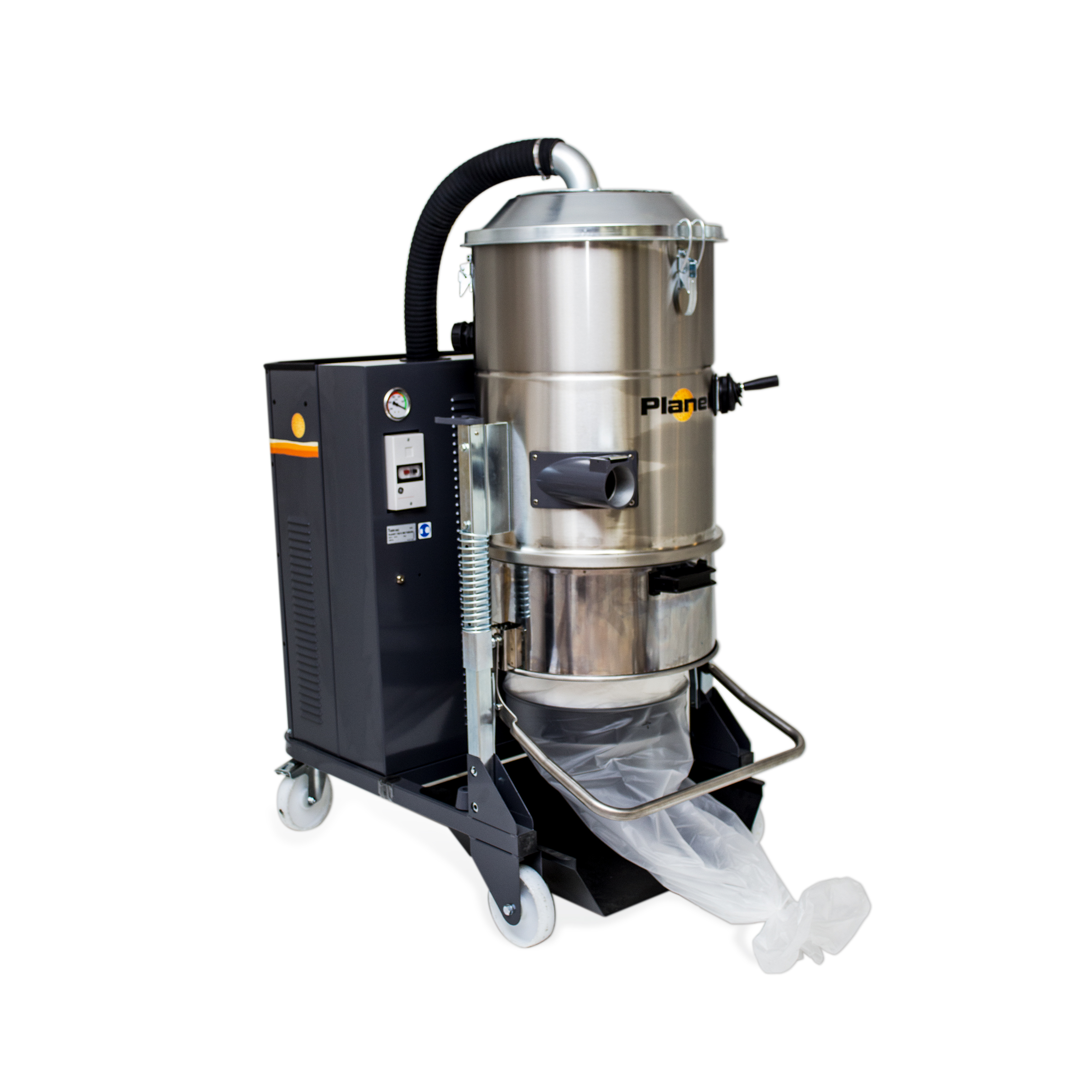

PLANET 740S MB

Industrial Heavy Duty VacTM for continuous duty. Very powerful machine capable of working with large diameter suction hoses up to 70mm. Ideal for multiple users on one machine. Stainless steel Type 304 construction. With Longopac® "endless" collection system. Perfect for food industry, machine shops, plastics industry, ceramics industry, heavy clean-up, etc.

/tempFiles/Guest-37.JPG?cID=4&itID=23&scID=9
/tempFiles/Guest-25.JPG
/tempFiles/Guest-28.JPG
/tempFiles/Guest-32.JPG
/tempFiles/Guest-75.jpg
/tempFiles/Guest-23.JPG
/tempFiles/Guest-27.JPG
/tempFiles/Guest-17.JPG
/tempFiles/Guest-31.JPG
/tempFiles/Guest-20.JPG

Downloads

Certifications

CLEANING MACHINES FOR UNCLASSIFIED (GENERAL PURPOSE) AREAS
CLASS 16 1101 - 16 1181
All the electrical components are recognized or certified UL or CSA and qualifies for all applicable requirements CAN/CSA-C 22.2 No. 243 & UL STD No. 1017

Features

  • Regenerative blower for continuous duty.
  • Star shaped polyester main filter with manual filter shaker.
  • Upstream filter cartridge for fine dust.
  • Optional HEPA filter with minimum efficiency of 99.97% on 0.3 micron (installed in the place of the upstream filter cartridge).
  • Longopac® "endless" collection system.
  • Filter chamber made of stainless steel Type 304.
  • Exhaust silencer for a quiet operation.

TechnicalSpecs


Specs111222A1111222A2111222A5
Collection Type
Dry
Dry
Dry
Voltage @60Hz
460 V
208-230 V
575 V
Type of power
3-phase
3-phase
3-phase
Power
6 HP (4600 W)
6 HP (4600 W)
5.5 HP (4000W)
Current (Max)
n/a
n/a
7.6 amps
Airflow
240 CFM
240 CFM
240 CFM
Waterlift (inches H2O)
155 in. H2O
155 in. H2O
155 in. H2O
VRV (Vacuum Relief Valve)
110 in. H2O
110 in. H2O
110 in. H2O
Main Filter Area
19500 cm2 + 10000 cm2
19500 cm2 + 10000 cm2
19500 cm2 + 10000 cm2
HEPA Filter
Optional
Optional
Optional
Type of filter
Star shaped + cartridge
Star shaped + cartridge
Star shaped + cartridge
Optional HEPA Filter Efficiency
99.97% on 0.3 micron
99.97% on 0.3 micron
99.97% on 0.3 micron
HEPA Filter Area (upstream)
10000 cm2
10000 cm2
10000 cm2
Dimensions (L x W x H)
43" x 24.5" x 58" (109cm x 62cm x 147.5cm)
43" x 24.5" x 58" (109cm x 62cm x 147.5cm)
43" x 24.5" x 58" (109cm x 62cm x 147.5cm)
Machine Inlet Diameter
70 mm
70 mm
70 mm
Weight (Vacuum only)
305 lbs (120 kg)
305 lbs (120 kg)
305 lbs (120 kg)
Cord Length
30 ft. (9m)
30 ft. (9m)
30 ft. (9m)
Container Capacity
Longopac®
Longopac®
Longopac®
Sound Level (@1m)
74 dB(a)
74 dB(a)
74 dB(a)
