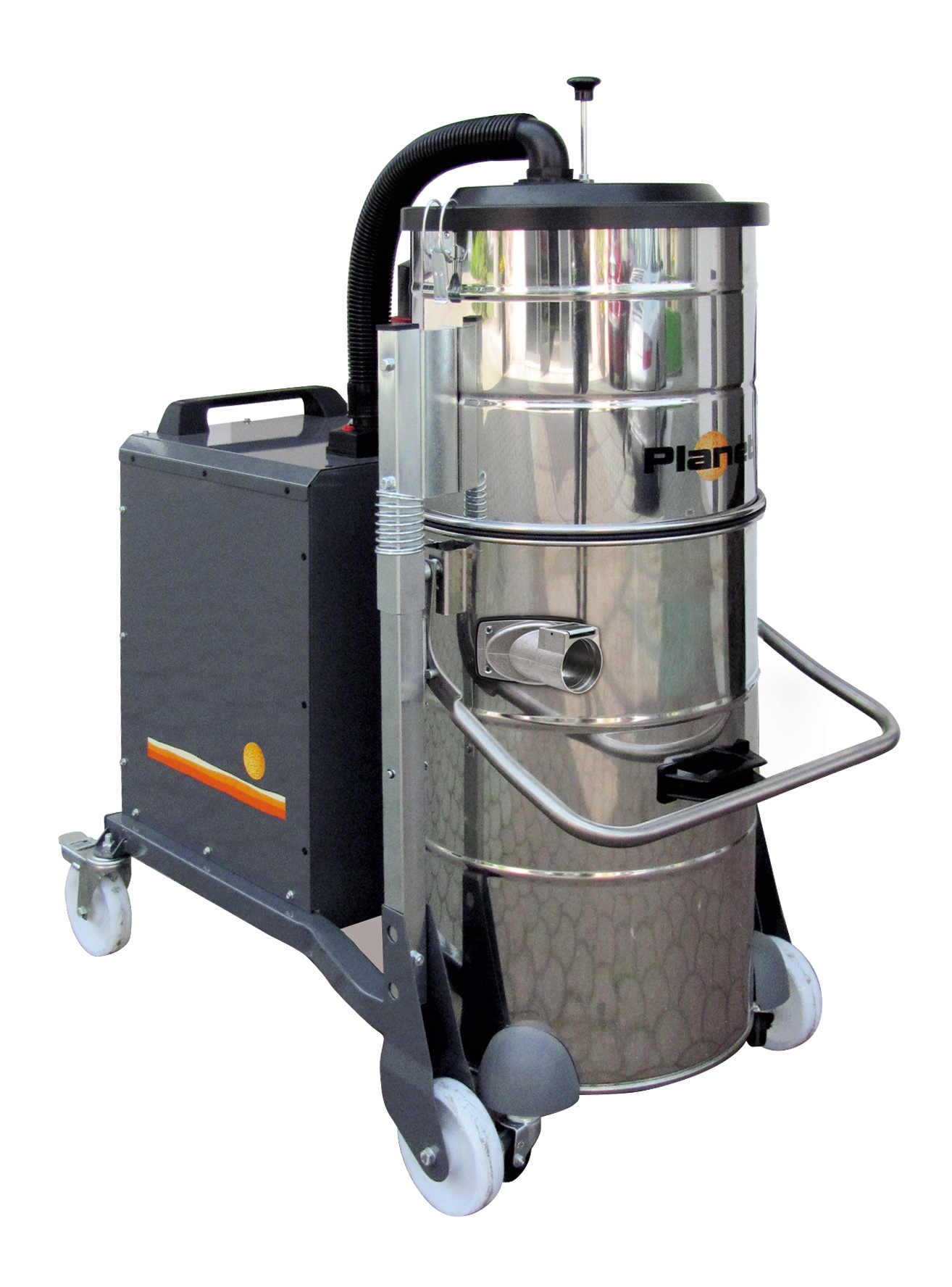

PLANET 115M GL

Low cost Heavy Duty VacTM for continuous duty. Available in Single phase and 3phase configurations. Very powerful machine with compact design. Detachable recovery tank for easy emptying. Perfect for machine shops, cosmetics industry, plastics industry, ceramics industry, general clean-up, etc.

/tempFiles/Guest-178.jpg?ciID=1&itID=11
/tempFiles/Guest-169.jpg
/tempFiles/Guest-171.jpg
/tempFiles/Guest-173.jpg
/tempFiles/Guest-127.jpg
/tempFiles/Guest-174.jpg
/tempFiles/Guest-175.jpg
/tempFiles/Guest-176.jpg
/tempFiles/Guest-16.JPG
/tempFiles/Guest-180.jpg

Certifications

CLEANING MACHINES FOR UNCLASSIFIED (GENERAL PURPOSE) AREAS
CLASS 16 1101 - 16 1181
All the electrical components are recognized or certified UL or CSA and qualifies for all applicable requirements CAN/CSA-C 22.2 No. 243 & UL STD No. 1017


Features

  • Regenerative blower for continuous duty.
  • Main Filter with Manual Filter Shaker
  • Upstream filter cartridge for fine dust.
  • Optional HEPA filter with minimum efficiency of 99.97% on 0.3 micron (installed in the place of the upstream filter cartridge).
  • Detachable recovery tank for easy emptying.

TechnicalSpecs


Specs111208A1111208A2111208A4
Collection Type
Dry (Wet optional)
Dry (Wet optional)
Dry (Wet optional)
Voltage @60Hz
460 V
230 V
230 V
Type of power
3-phase
3-phase
1-phase
Power
2 HP (1500W)
2 HP (1500W)
2 HP (1500W)
Current (Max)
n/a
n/a
n/a
Airflow
118 CFM
118 CFM
118 CFM
Waterlift (inches H2O)
80 in. H2O
80 in. H2O
80 in. H2O
Container Material
430 Stainless steel
430 Stainless steel
430 Stainless steel
Container diameter
420 mm
420 mm
420 mm
Main Filter Area
3740 cm2 + 13900 cm2
3740 cm2 + 13900 cm2
3740 cm2 + 13900 cm2
HEPA Filter
Optional
Optional
Optional
Type of filter
Star shaped + cartridge
Star shaped + cartridge
Star shaped + cartridge
Optional HEPA Filter Efficiency
99.97% on 0.3 micron
99.97% on 0.3 micron
99.97% on 0.3 micron
HEPA Filter Area (upstream)
13900 cm2
13900 cm2
13900 cm2
Dimensions (L x W x H)
n/a
n/a
n/a
Machine Inlet Diameter
60 mm
60 mm
60 mm
Weight (Vacuum only)
160 lbs (73 kg)
160 lbs (73 kg)
160 lbs (73 kg)
Cord Length
30 ft. (9m)
30 ft. (9m)
30 ft. (9m)
Container Capacity
15.6 gal (60 L)
15.6 gal (60 L)
15.6 gal (60 L)
Sound Level (@1m)
n/a
n/a
n/a
