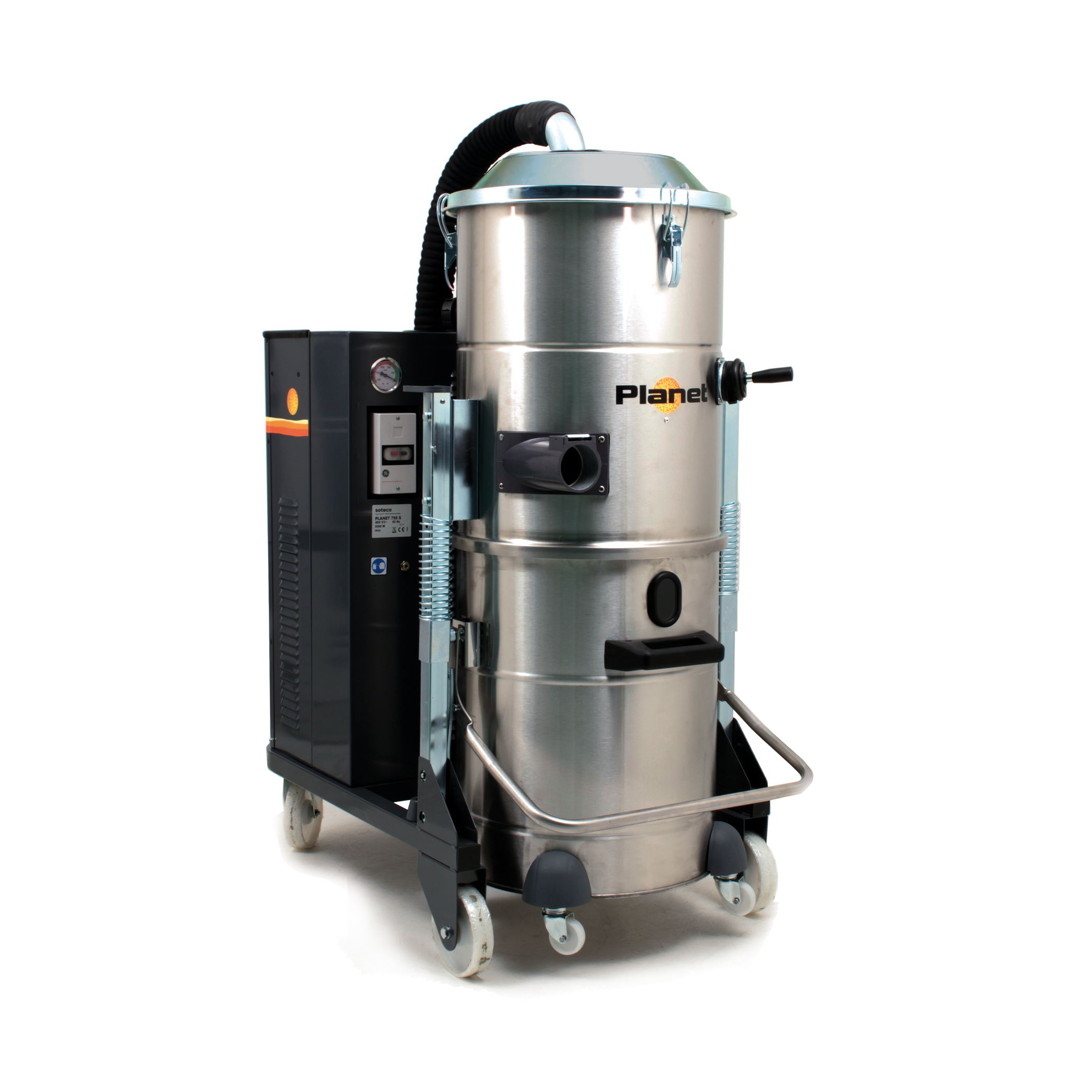

PLANET 740S

Industrial Heavy Duty VacTM for continuous duty. Very powerful machine capable of working with large diameter suction hoses up to 70mm. Ideal for multiple users on one machine. Stainless steel Type 304 construction. Detachable recovery tank for easy emptying. Perfect for food industry, machine shops, plastics industry, ceramics industry, heavy clean-up, etc.

/tempFiles/Guest-14.jpg?ciID=1&itID=16
/tempFiles/Guest-25.JPG
/tempFiles/Guest-28.JPG
/tempFiles/Guest-32.JPG
/tempFiles/Guest-23.JPG
/tempFiles/Guest-17.JPG
/tempFiles/Guest-27.JPG
/tempFiles/Guest-20.JPG
/tempFiles/Guest-31.JPG
/tempFiles/Guest-33.JPG
/tempFiles/Guest-30.JPG

Downloads

Certifications

CLEANING MACHINES FOR UNCLASSIFIED (GENERAL PURPOSE) AREAS
CLASS 16 1101 - 16 1181
All the electrical components are recognized or certified UL or CSA and qualifies for all applicable requirements CAN/CSA-C 22.2 No. 243 & UL STD No. 1017

Features

  • Regenerative blower for continuous duty.
  • Star shaped polyester main filter with manual filter shaker.
  • Upstream filter cartridge for fine dust.
  • Optional HEPA filter with minimum efficiency of 99.97% on 0.3 micron (installed in the place of the upstream filter cartridge).
  • Detachable recovery tank for easy emptying.
  • Filter chamber and recovery tank made of stainless steel Type 304.
  • Sight glass installed on recovery tank.
  • Exhaust silencer for a quiet operation.

TechnicalSpecs


Specs111218A1111218A2111218A5
Collection Type
Dry (Wet optional)
Dry (Wet optional)
Dry (Wet optional)
Voltage @60Hz
460 V
208-230 V
575 V
Type of power
3-phase
3-phase
3-phase
Power
6 HP (4600 W)
6 HP (4600 W)
5.5 HP (4000W)
Current (Max)
n/a
n/a
7.6 amps
Airflow
240 CFM
240 CFM
240 CFM
Waterlift (inches H2O)
155 in. H2O
155 in. H2O
155 in. H2O
VRV (Vacuum Relief Valve)
110 in. H2O
110 in. H2O
110 in. H2O
Container Material
304 stainless steel
304 stainless steel
304 stainless steel
Container diameter
460 mm
460 mm
460 mm
Main Filter Area
19500 cm2 + 10000 cm2
19500 cm2 + 10000 cm2
19500 cm2 + 10000 cm2
HEPA Filter
Optional
Optional
Optional
Type of filter
Star shaped + cartridge
Star shaped + cartridge
Star shaped + cartridge
Optional HEPA Filter Efficiency
99.97% on 0.3 micron
99.97% on 0.3 micron
99.97% on 0.3 micron
HEPA Filter Area (upstream)
10000 cm2
10000 cm2
10000 cm2
Dimensions (L x W x H)
43" x 24.5" x 58" (109cm x 62cm x 147.5cm)
43" x 24.5" x 58" (109cm x 62cm x 147.5cm)
43" x 24.5" x 58" (109cm x 62cm x 147.5cm)
Machine Inlet Diameter
70 mm
70 mm
70 mm
Weight (Vacuum only)
305 lbs (120 kg)
305 lbs (120 kg)
305 lbs (120 kg)
Cord Length
30 ft. (9m)
30 ft. (9m)
30 ft. (9m)
Container Capacity
26 gal (100 L)
26 gal (100 L)
26 gal (100 L)
Sound Level (@1m)
74 dB(a)
74 dB(a)
74 dB(a)
