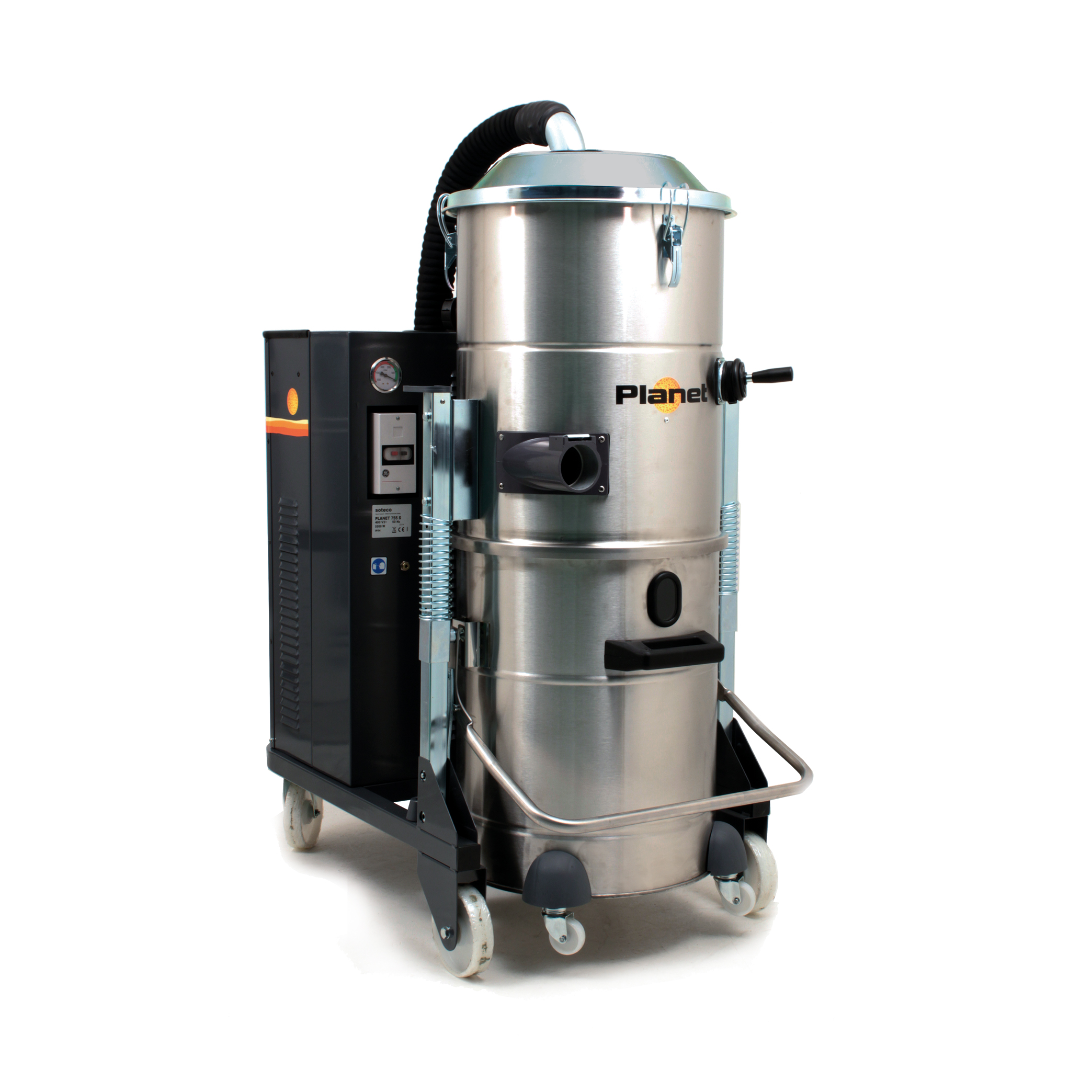

PLANET 740S ATXH

Industrial Heavy Duty Vac^TM for continuous duty suitable for use in ATEX Category 3D (Zone 22) environments. Equipped with HEPA filter with 99.97% minimum efficiency on 0.3 micron. Very powerful machine capable of working with large diameter suction hoses up to 70mm. Ideal for multiple users on one machine. Stainless steel Type 304 construction. Detachable recovery tank for easy emptying.

Downloads

Planet 740S ATXH Brochure

Planet 740S ATXH Brochure (French)

Planet 740S ATXH Brochure (Spanish)

Certifications

ATEX 1st Party Certified
ce-mark ex_mark II 3 D c T125ºC IP65

Features

ATEX Compliant: suitable for use in Category 3D (Zone 22) environments.
Regenerative blower for continuous duty.
Star shaped main filter with manual filter shaker. Filter made of conductive material.
Upstream HEPA filter with minimum efficiency of 99.97% on 0.3 micron.
Detachable recovery tank for easy emptying.
Filter chamber and recovery tank made of stainless steel Type 304.
Sight glass installed on recovery tank.
Exhaust silencer for a quiet operation.

TechnicalSpecs

Specs	111223A1	111223A2
Collection Type	Dry Dry	Dry Dry
Voltage @60Hz	460 V 460 V	230 V 230 V
Type of power	3-phase 3-phase	3-phase 3-phase
Power	6 HP (4600 W) 6 HP (4600 W)	6 HP (4600 W) 6 HP (4600 W)
Current (Max)	7.9 amps 7.9 amps	19.5 amps 19.5 amps
Airflow	265 CFM 265 CFM	265 CFM 265 CFM
Waterlift (inches H₂O)	155 in. H₂O 155 in. H₂O	155 in. H₂O 155 in. H₂O
VRV (Vacuum Relief Valve)	110 in. H₂O 110 in. H₂O	110 in. H₂O 110 in. H₂O
Container Material	304 stainless steel 304 stainless steel	304 stainless steel 304 stainless steel
Container diameter	460 mm 460 mm	460 mm 460 mm
Main Filter Area	19500 cm² + 10000 cm² 19500 cm² + 10000 cm²	19500 cm² + 10000 cm² 19500 cm² + 10000 cm²
HEPA Filter	Included Included	Included Included
Type of filter	Star shaped + HEPA cartridge Star shaped + HEPA cartridge	Star shaped + HEPA cartridge Star shaped + HEPA cartridge
Optional HEPA Filter Efficiency	99.97% on 0.3 micron 99.97% on 0.3 micron	99.97% on 0.3 micron 99.97% on 0.3 micron
HEPA Filter Area (upstream)	10000 cm² 10000 cm²	10000 cm² 10000 cm²
Dimensions (L x W x H)	43" x 24.5" x 58" (109cm x 62cm x 147.5cm) 43" x 24.5" x 58" (109cm x 62cm x 147.5cm)	43" x 24.5" x 58" (109cm x 62cm x 147.5cm) 43" x 24.5" x 58" (109cm x 62cm x 147.5cm)
Machine Inlet Diameter	70 mm 70 mm	70 mm 70 mm
Weight (Vacuum only)	305 lbs (120 kg) 305 lbs (120 kg)	305 lbs (120 kg) 305 lbs (120 kg)
Cord Length	30 ft. (9m) 30 ft. (9m)	30 ft. (9m) 30 ft. (9m)
Container Capacity	26 gal (100 L) 26 gal (100 L)	26 gal (100 L) 26 gal (100 L)
Sound Level (@1m)	74 dB(a) 74 dB(a)	74 dB(a) 74 dB(a)
