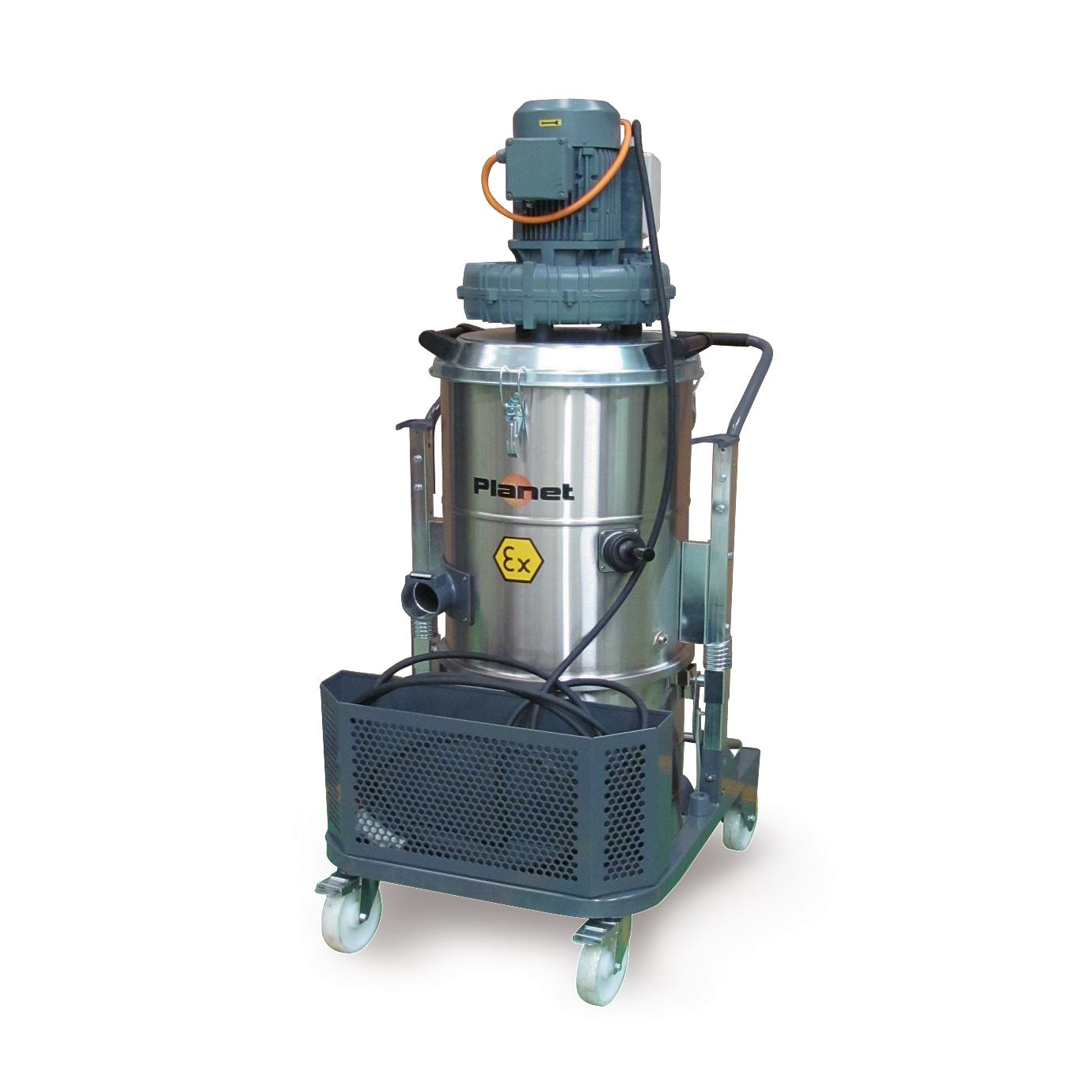

PLANET 300S ATEX

Industrial Heavy Duty VacTM for continuous duty suitable for use in ATEX Category 3D (Zone 22) environments. Compact design for easy maneuverability. Very powerful machine capable of working with large diameter suction hoses up to 70mm. Stainless steel Type 304 construction. Detachable recovery tank for easy emptying.

/tempFiles/Guest-51.jpg?ciID=2&itID=19
/tempFiles/Guest-50.JPG
/tempFiles/Guest-20.JPG
/tempFiles/Guest-52.JPG
/tempFiles/Guest-27.JPG
/tempFiles/Guest-53.JPG
/tempFiles/Guest-31.JPG
/tempFiles/Guest-55.JPG

Downloads

Certifications

ATEX 1st Party Certified
ce-mark ex_mark  II 3 D c T125ºC IP55

Features

  • ATEX Compliant: suitable for use in Category 3D (Zone 22) environments.
  • Regenerative blower for continuous duty.
  • Star shaped main filter with manual filter shaker. Filter made of conductive material.
  • Detachable recovery tank for easy emptying.
  • Filter chamber and recovery tank made of stainless steel Type 304.
  • Compact design for easy maneuverability.

TechnicalSpecs


Specs111225A1111225A2
Collection Type
Dry
Dry
Voltage @60Hz
460 V
230 V
Type of power
3-phase
3-phase
Power
4 HP (3000 W)
4 HP (3000 W)
Current (Max)
n/a
n/a
Airflow
179 CFM
179 CFM
Waterlift (inches H2O)
100 in. H2O
100 in. H2O
Container Material
304 stainless steel
304 stainless steel
Container diameter
460 mm
460 mm
Main Filter Area
19500 cm2
19500 cm2
HEPA Filter
n/a
n/a
Type of filter
Star Shaped
Star Shaped
Optional HEPA Filter Efficiency
n/a
n/a
HEPA Filter Area (upstream)
n/a
n/a
Dimensions (L x W x H)
n/a
n/a
Machine Inlet Diameter
70 mm
70 mm
Weight (Vacuum only)
154 lbs (70 kg)
154 lbs (70 kg)
Cord Length
30 ft. (9m)
Container Capacity
26 gal (100 L)
26 gal (100 L)
Sound Level (@1m)
76 dB(a)
76 dB(a)
