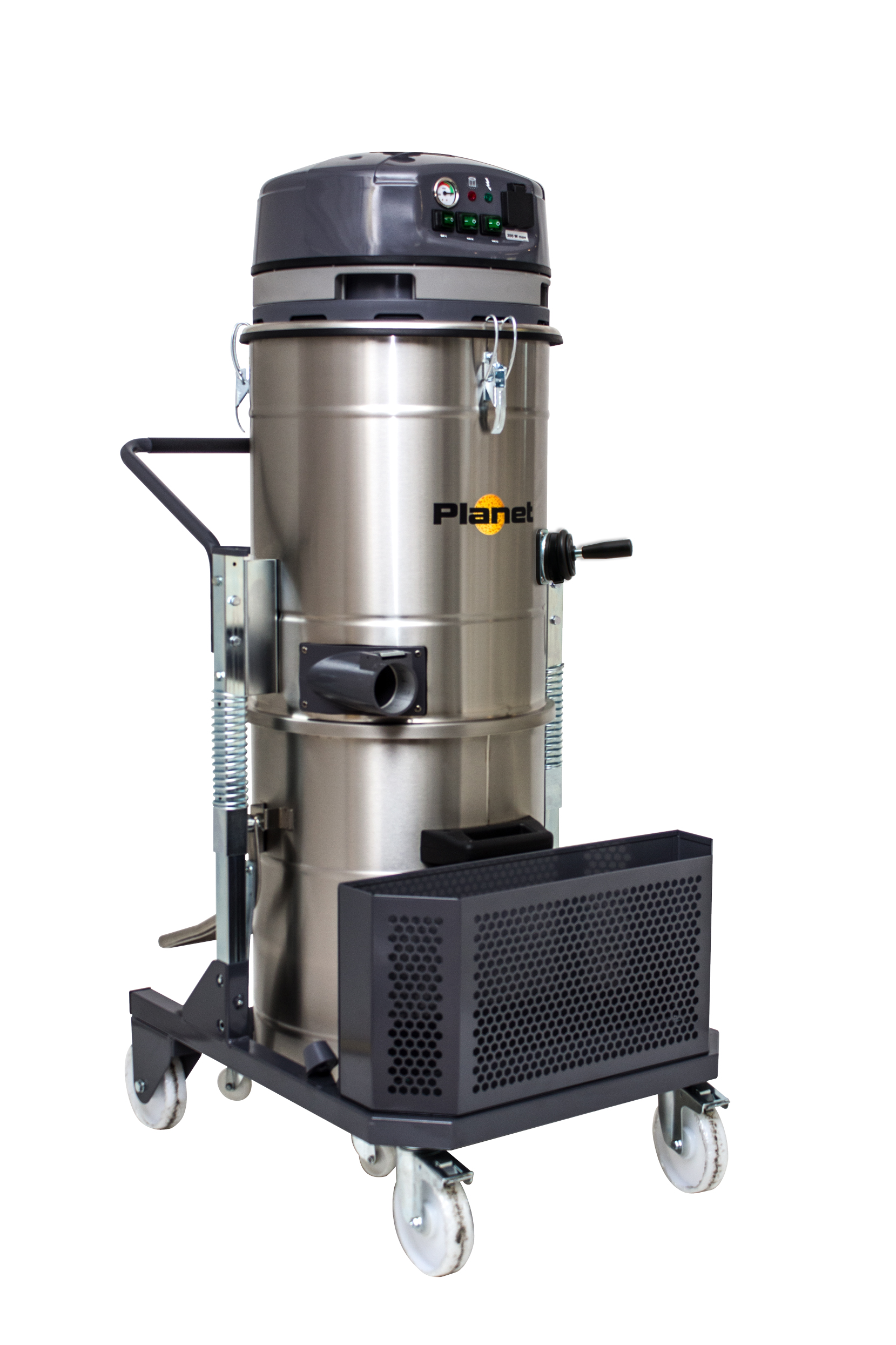

PLANET 200

Industrial Duty Vac® for general cleaning. Very powerful machine capable of working with large diameter suction hoses up to 70mm. Stainless steel Type 304 construction. Detachable recovery tank for easy emptying. Perfect for food industry, machine shops, plastics industry, ceramics industry, printing, textiles, heavy clean-up, etc.

Downloads

Planet 200 Brochure (French)

Planet 200 Brochure (Spanish)

Planet 200 Brochure

Certifications

CLEANING MACHINES FOR UNCLASSIFIED (GENERAL PURPOSE) AREAS
CLASS 16 1101 - 16 1181
All the electrical components are recognized or certified UL or CSA and qualifies for all applicable requirements CAN/CSA-C 22.2 No. 243 & UL STD No. 1017

Features

3 Motors with independent control can be run simultaneously or individually.
Star shaped polyester main filter with manual filter shaker.
Optional HEPA filter with minimum efficiency of 99.97% on 0.3 micron.
Filter chamber and recovery tank made of stainless steel Type 304.
Detachable recovery tank for easy emptying.
Sight glass installed on recovery tank.
Pressure gage and illuminated filter blockage indicator.

TechnicalSpecs

Specs	112060A	112062A
Model Name	200 200	200S 200S
Collection Type	Dry (Wet optional) Dry (Wet optional)	Dry (Wet optional) Dry (Wet optional)
Voltage @60Hz	120 V 120 V	120 V 120 V
Type of power	1-phase 1-phase	1-phase 1-phase
Power	3.22 HP (2400 W) 3.22 HP (2400 W)	3.22 HP (2400 W) 3.22 HP (2400 W)
Current (Max)	15.8 amps 15.8 amps	15.8 amps 15.8 amps
Airflow	270 CFM (7646 L/min) 270 CFM (7646 L/min)	270 CFM (7646 L/min) 270 CFM (7646 L/min)
Waterlift (inches H₂O)	71.5 in (1816 mmH₂O) 71.5 in (1816 mmH₂O)	71.5 in (1816 mmH₂O) 71.5 in (1816 mmH₂O)
Container Material	304 stainless steel 304 stainless steel	304 stainless steel 304 stainless steel
Container diameter	460 mm 460 mm	460 mm 460 mm
Main Filter Area	21ft.² (19500 cm²) 21ft.² (19500 cm²)	21ft.² (19500 cm²) 21ft.² (19500 cm²)
HEPA Filter	n/a n/a	n/a n/a
Type of filter	Star Shaped Star Shaped	Star Shaped Star Shaped
Optional HEPA Filter Efficiency	n/a n/a	n/a n/a
HEPA Filter Area (upstream)	n/a n/a	n/a n/a
Dimensions (L x W x H)	32" x 26" x 65" (81cm x 66cm x 165cm) 32" x 26" x 65" (81cm x 66cm x 165cm)	n/a n/a
Machine Inlet Diameter	70 mm 70 mm	70 mm 70 mm
Weight (Vacuum only)	143 lbs (65 kg) 143 lbs (65 kg)	154 lbs (70 kg) 154 lbs (70 kg)
Cord Length	30 ft. (9m) 30 ft. (9m)	30 ft. (9m) 30 ft. (9m)
Container Capacity	15.6 gal (60 L) 15.6 gal (60 L)	26 gal (100 L) 26 gal (100 L)
Sound Level (@1m)	70 dB(a) 70 dB(a)	70 dB(a) 70 dB(a)
