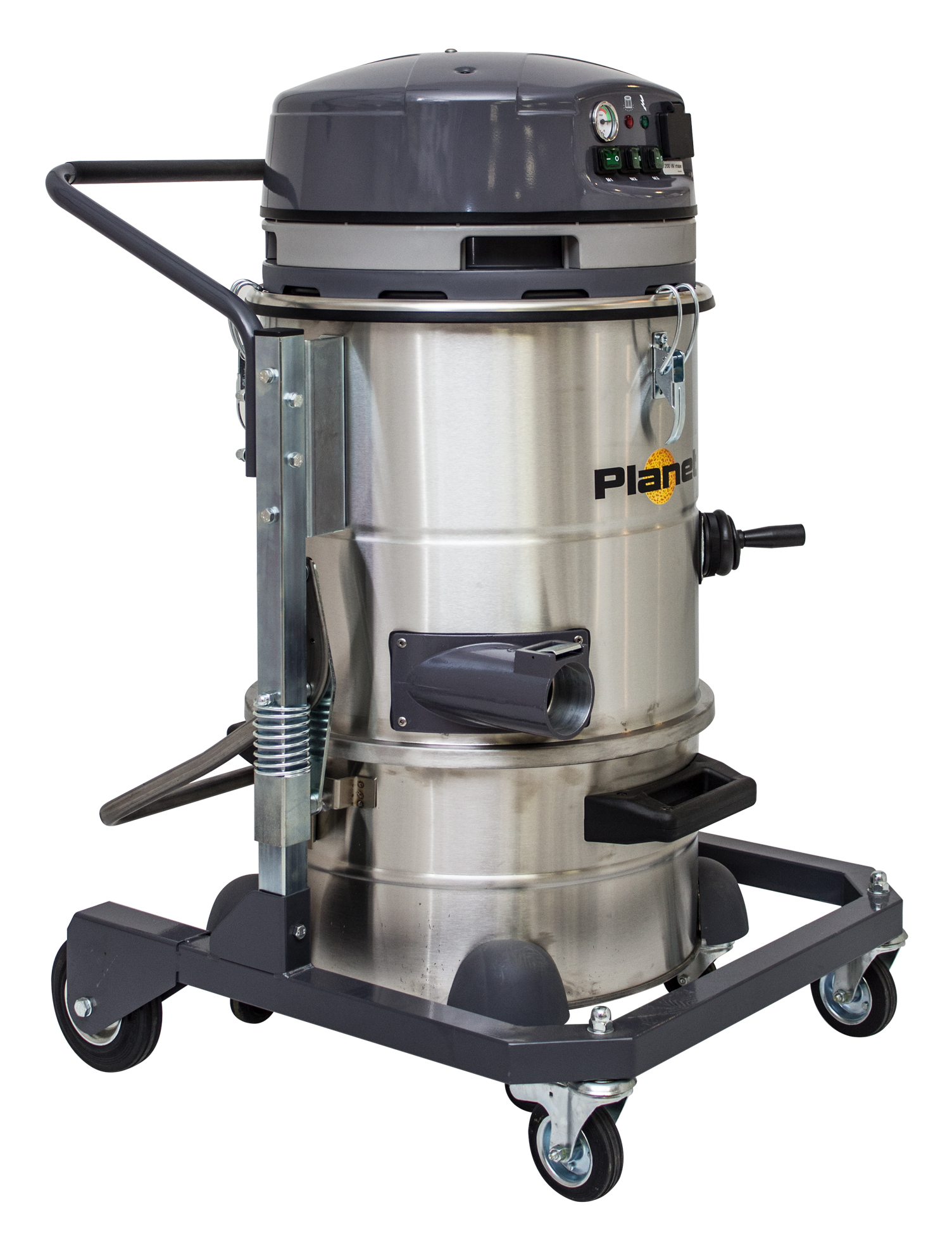

PLANET 201

Industrial Duty Vac® for general cleaning. Very powerful machine capable of working with large diameter suction hoses up to 70mm. Stainless steel Type 304 construction. Detachable recovery tank for easy emptying. Perfect for food industry, machine shops, plastics industry, ceramics industry, printing, textiles, heavy clean-up, etc.

/tempFiles/Guest-179.jpg?ciID=2&itID=26
/tempFiles/Guest-77.jpg
/tempFiles/Guest-23.JPG
/tempFiles/Guest-27.JPG
/tempFiles/Guest-15.JPG

Downloads

Certifications

Features

  • 3 Motors with independent control can be run simultaneously or individually.
  • Star shaped polyester main filter with manual filter shaker.
  • Optional HEPA filter with minimum efficiency of 99.97% on 0.3 micron (installed in the place of the upstream filter cartridge).
  • Filter chamber and recovery tank made of stainless steel Type 304.
  • Detachable recovery tank for easy emptying.
  • Pressure gage and illuminated filter blockage indicator.

TechnicalSpecs


Specs111886A111887A
Model Name
Planet 201
Planet 201 HEPA
Collection Type
Dry
Dry
Voltage @60Hz
120 V
120 V
Type of power
1-phase
1-phase
Power
3.22 HP (2400 W)
3.22 HP (2400 W)
Current (Max)
15.8 amps
15.8 amps
Airflow
270 CFM (7646 L/min)
270 CFM (7646 L/min)
Waterlift (inches H2O)
71.5 in (1816 mmH2O)
71.5 in (1816 mmH2O)
Container Material
304 stainless steel
304 stainless steel
Container diameter
460 mm
460 mm
Main Filter Area
21ft.2 (19500 cm2)
21ft.2 (19500 cm2)
HEPA Filter
Optional
Included
Type of filter
Star Shaped
Star Shaped
Optional HEPA Filter Efficiency
99.97% on 0.3 micron
99.97% on 0.3 micron
HEPA Filter Area (upstream)
8640 cm2
8640 cm2
Dimensions (L x W x H)
n/a
n/a
Machine Inlet Diameter
70 mm
70 mm
Weight (Vacuum only)
n/a
n/a
Cord Length
30 ft. (9m)
30 ft. (9m)
Container Capacity
10.5 gal (40 L)
10.5 gal (40 L)
Sound Level (@1m)
70 dB(a)
70 dB(a)
