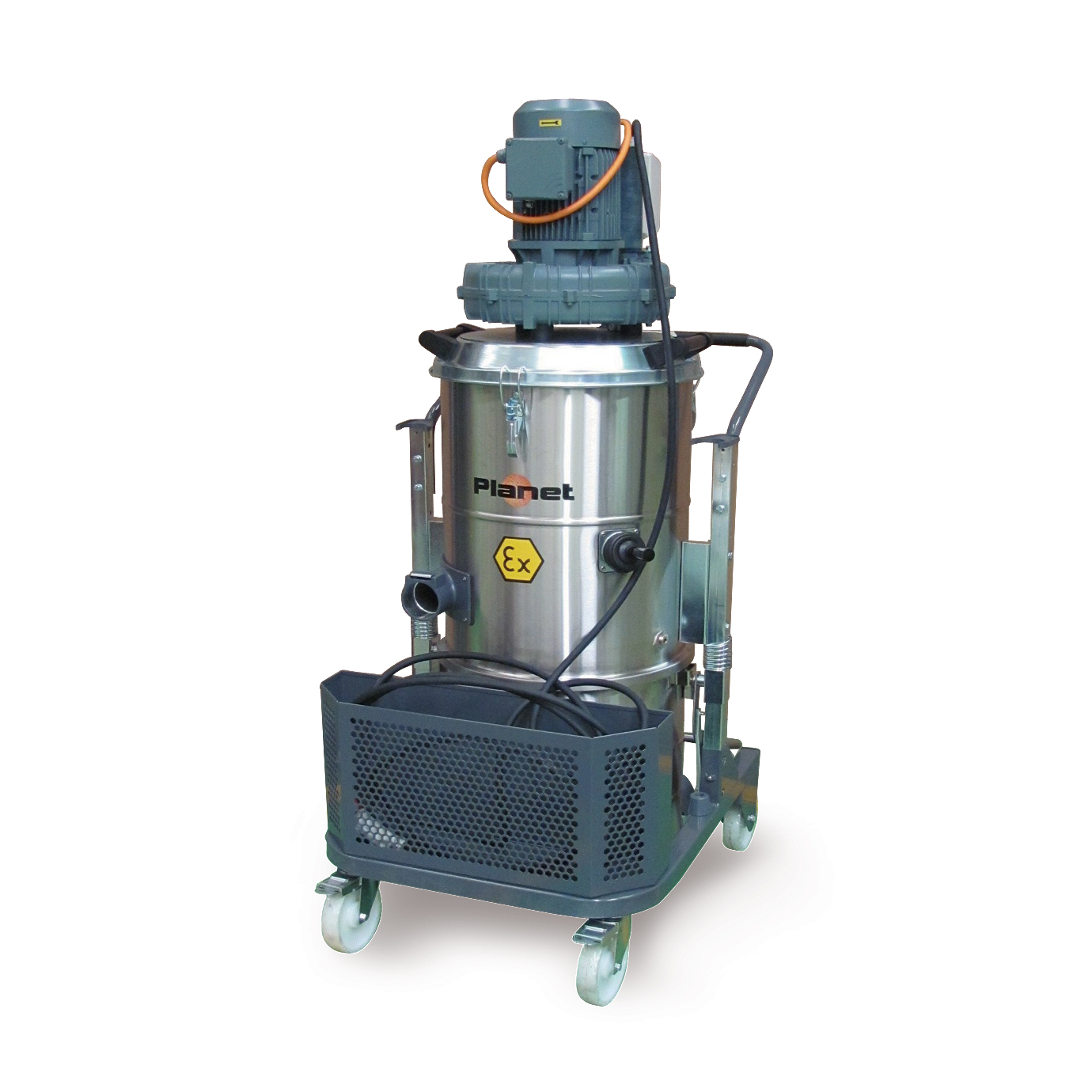

PLANET 300S ATEX

Industrial Heavy Duty Vac^TM for continuous duty suitable for use in ATEX Category 3D (Zone 22) environments. Compact design for easy maneuverability. Very powerful machine capable of working with large diameter suction hoses up to 70mm. Stainless steel Type 304 construction. Detachable recovery tank for easy emptying.

Downloads

Planet 300S ATEX Brochure

Planet 300S ATEX Brochure (French)

Planet 300S ATEX Brochure (Spanish)

Certifications

ATEX 1st Party Certified
ce-mark ex_mark II 3 D c T125ºC IP55

Features

ATEX Compliant: suitable for use in Category 3D (Zone 22) environments.
Regenerative blower for continuous duty.
Star shaped main filter with manual filter shaker. Filter made of conductive material.
Detachable recovery tank for easy emptying.
Filter chamber and recovery tank made of stainless steel Type 304.
Compact design for easy maneuverability.

TechnicalSpecs

Specs	111225A1	111225A2
Collection Type	Dry Dry	Dry Dry
Voltage @60Hz	460 V 460 V	230 V 230 V
Type of power	3-phase 3-phase	3-phase 3-phase
Power	4 HP (3000 W) 4 HP (3000 W)	4 HP (3000 W) 4 HP (3000 W)
Current (Max)	n/a n/a	n/a n/a
Airflow	179 CFM 179 CFM	179 CFM 179 CFM
Waterlift (inches H₂O)	100 in. H₂O 100 in. H₂O	100 in. H₂O 100 in. H₂O
Container Material	304 stainless steel 304 stainless steel	304 stainless steel 304 stainless steel
Container diameter	460 mm 460 mm	460 mm 460 mm
Main Filter Area	19500 cm² 19500 cm²	19500 cm² 19500 cm²
HEPA Filter	n/a n/a	n/a n/a
Type of filter	Star Shaped Star Shaped	Star Shaped Star Shaped
Optional HEPA Filter Efficiency	n/a n/a	n/a n/a
HEPA Filter Area (upstream)	n/a n/a	n/a n/a
Dimensions (L x W x H)	n/a n/a	n/a n/a
Machine Inlet Diameter	70 mm 70 mm	70 mm 70 mm
Weight (Vacuum only)	154 lbs (70 kg) 154 lbs (70 kg)	154 lbs (70 kg) 154 lbs (70 kg)
Cord Length	30 ft. (9m) 30 ft. (9m)
Container Capacity	26 gal (100 L) 26 gal (100 L)	26 gal (100 L) 26 gal (100 L)
Sound Level (@1m)	76 dB(a) 76 dB(a)	76 dB(a) 76 dB(a)
